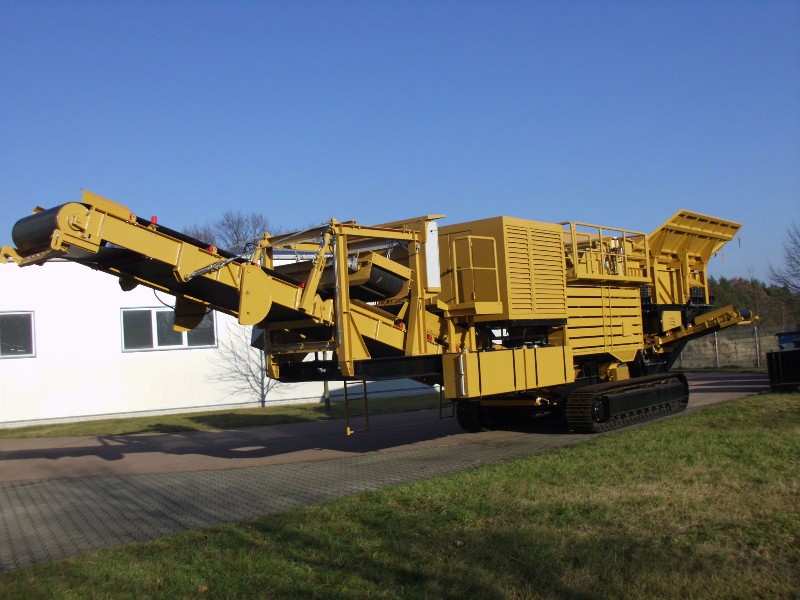

Mobile Crushing and Recycling Plant PR 1200

Mobile crushing and recycling plant Model PR 1200 with impact crusher 1,200 mm mounted on a crawler chassis for building debris, concrete with or without reinforcement, asphalt debris and medium hard natural stone.

Technical Specifications

Transport Dimensions
Width : 3,000 mm
Length: 17,420 mm
Height: 4,000 mm
Weight: approx. 50,000 kg
Performance:
160 to 220 tonnes (recycling material)
250 to 350 tonnes (medium hard natural stone)

Main Components

Feed Hopper

Vibrating Chute with step grate for pre-screening

Conveyor for pre-screen material

Impact Crusher

Vibrating chute

230 kW Diesel engine with 100 kVA generator (approx.)

Electric Control Unit

Options:Magnetic SeparatorSpeed Control for Feed ChuteRadio Remote Control


apollo_pr_1200_en.pdf [1.688 KB]
