PM 1200 / PM 1200V

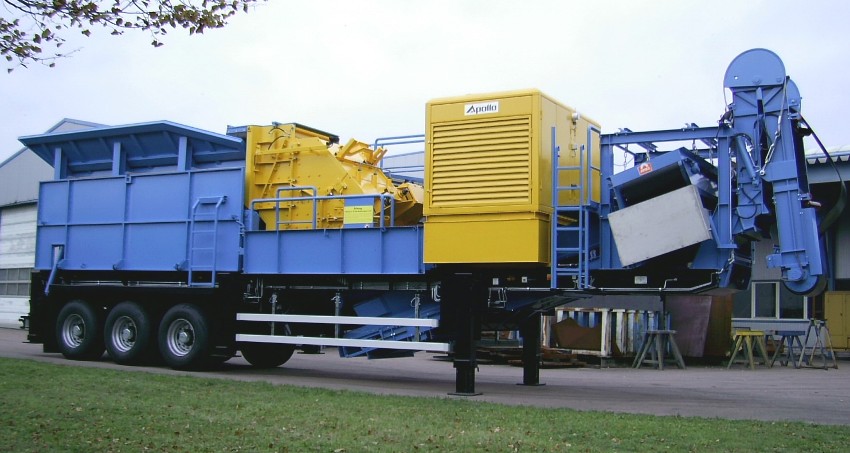

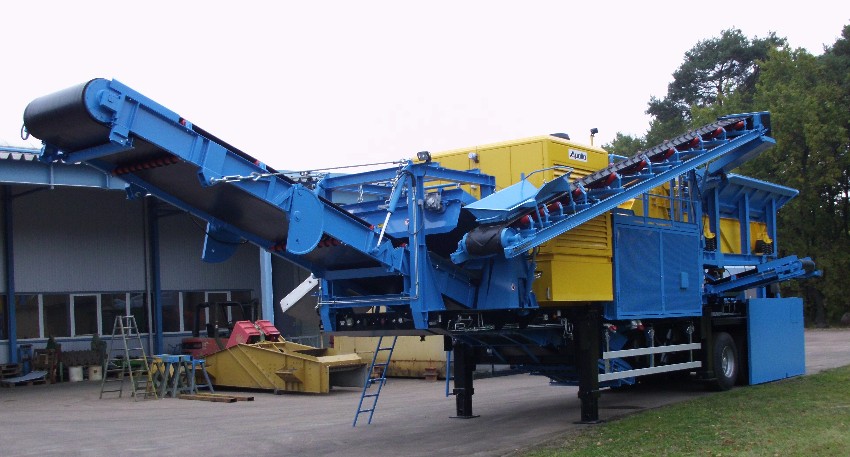

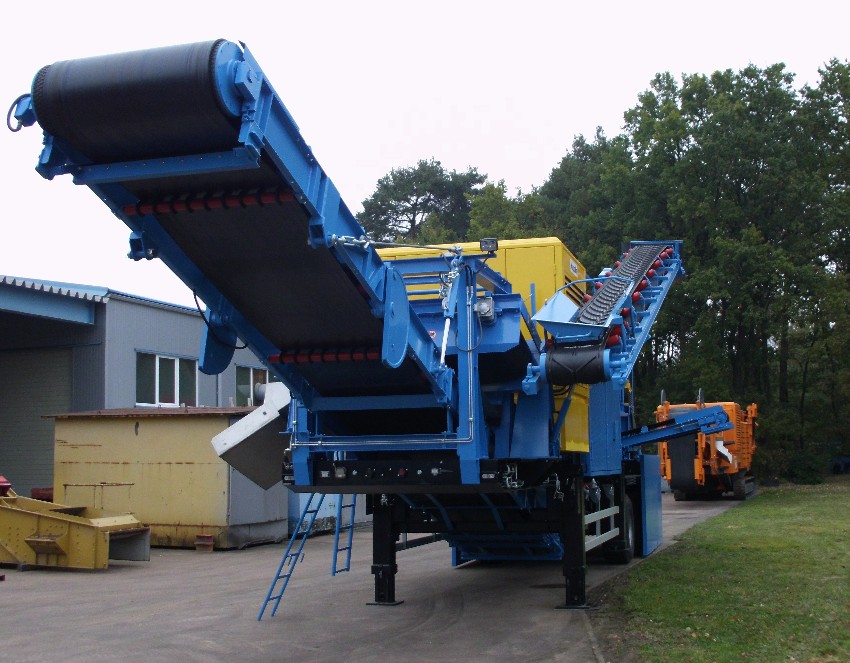

Mobile crushing and recycling plant Model PM 1200 or PM 1200V on a triple axle semi-trailer for crushing building debris, concrete with or without reinforcement, asphalt debris and medium hard natural stone.

The Model PM 1200 is also available as a PM 1200V version with separate pre-screen machine.

Transport Dimensions
Width : 2,500 mm
Length: 12,000 mm
Height: 4,000 mm
Weight: 42,000 kg (approx.)

Main Components
Feed Hopper

Vibrating Chute with step grate for pre-screening

Conveyor for pre-screening material

Jaw Crusher
Performance between 100 and 160 to/h (recycling material) and between 150 and 200 to/h (medium hard natural stone)
Vibrating Chute

Discharge Conveyor

Power Unit: 230 kW/1800 RPM (approx.) with 100 kVA alternator

Triple Axle Semi-trailer Chassis with air brake, lighting and hydraulic supports; corresponding to German traffic laws

Control Unit

Options:
- Magnetic SeparatorSpeed
- Control for Feed Chute
- Radio Remote Control
