PR 1000

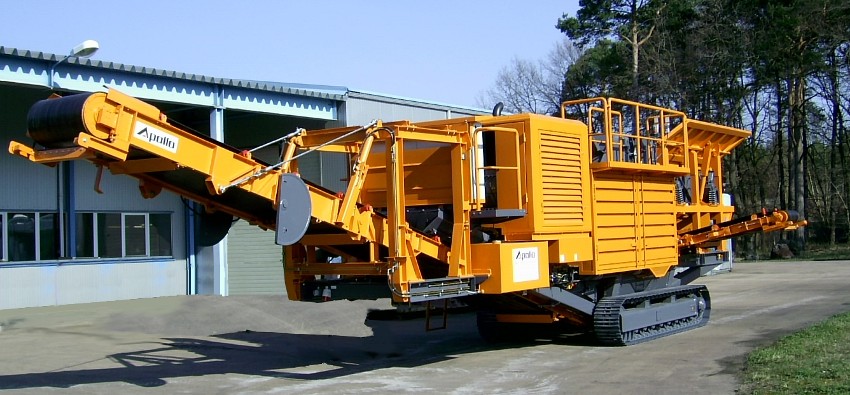

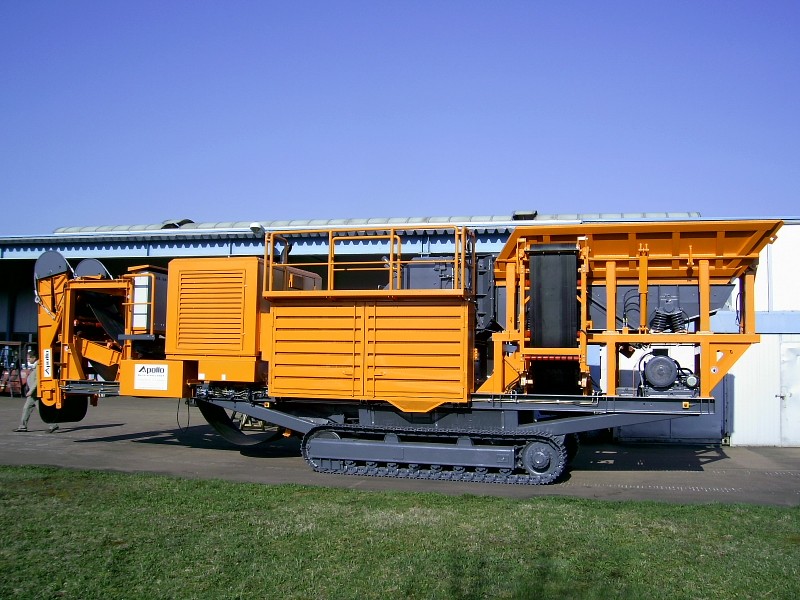

Mobile crushing and recycling plant Model PR 1000 with impact crusher 1000 mm mounted on crawler chassis. For crushing building debris, concrete with or without reinforcement and medium hard natural stone.

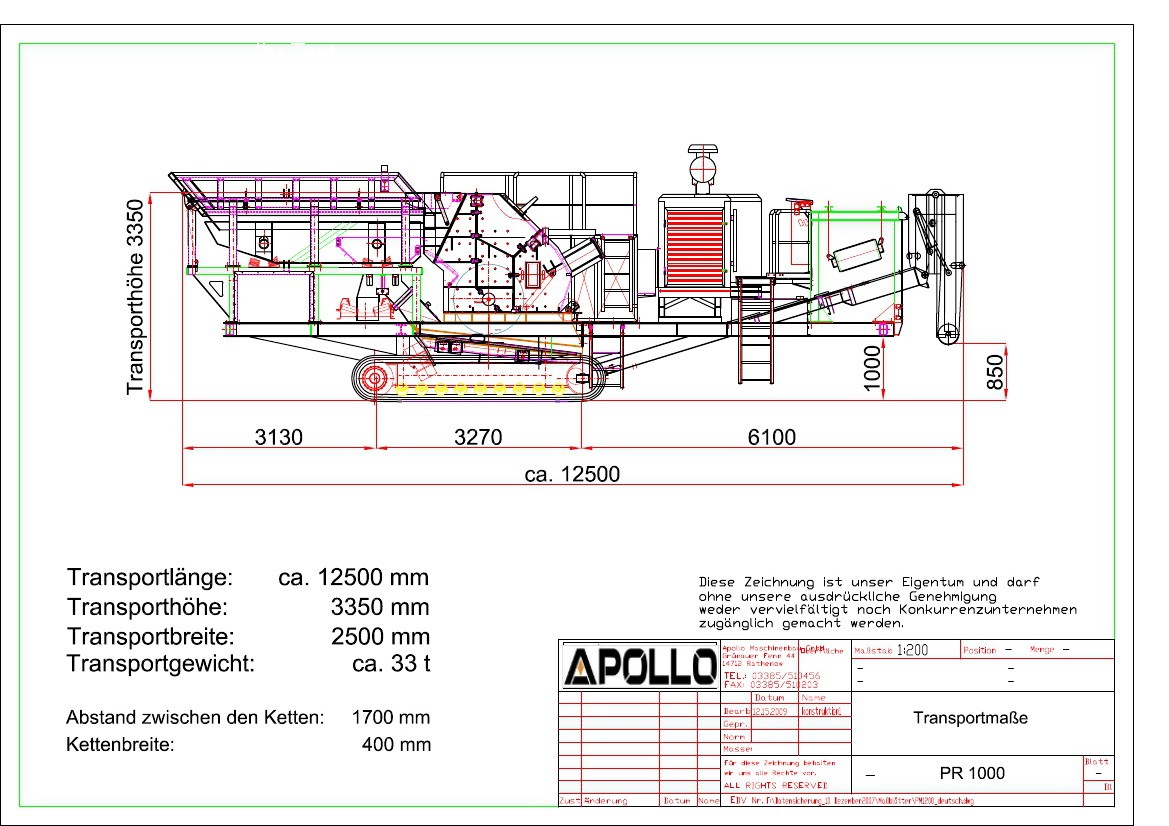

Transport Dimensions
Width : 2,500 mm
Length: 12,000 mm
Height: 3,300 mm
Weight: approx. 33,000 kg

Main Components:

Feed Hopper

Vibrating Chute

Conveyor for pre-screen material

Impact Crusher
Performance between 80 and 120 to/h (recycling material) and between 150 and 200 to/h (medium hard natural stone)

Vibration Chute

Discharge Conveyor

Power Unit: 181 kW /1,800 RPM (approx.) Diesel engine with 75 kVA alternator

Crawler Chassis

Control Unit

Options:
- Magnetic Separator
- Speed Control for Feed Chute
- Radio Remote Control

apollo_pr_1000_en.pdf [2.202 KB]
