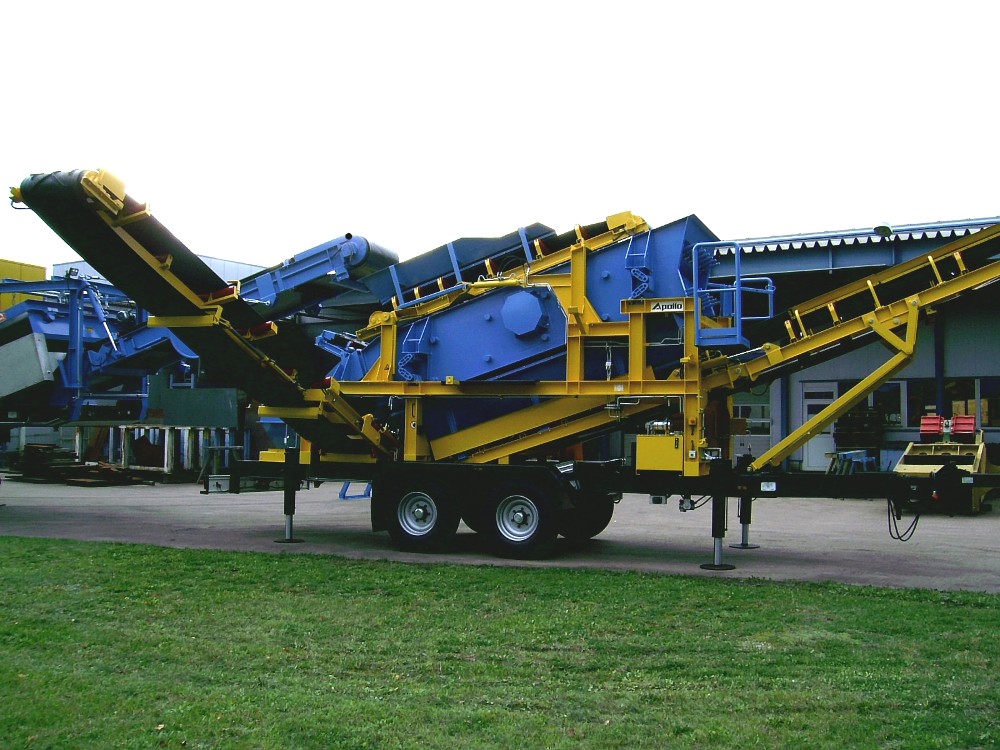

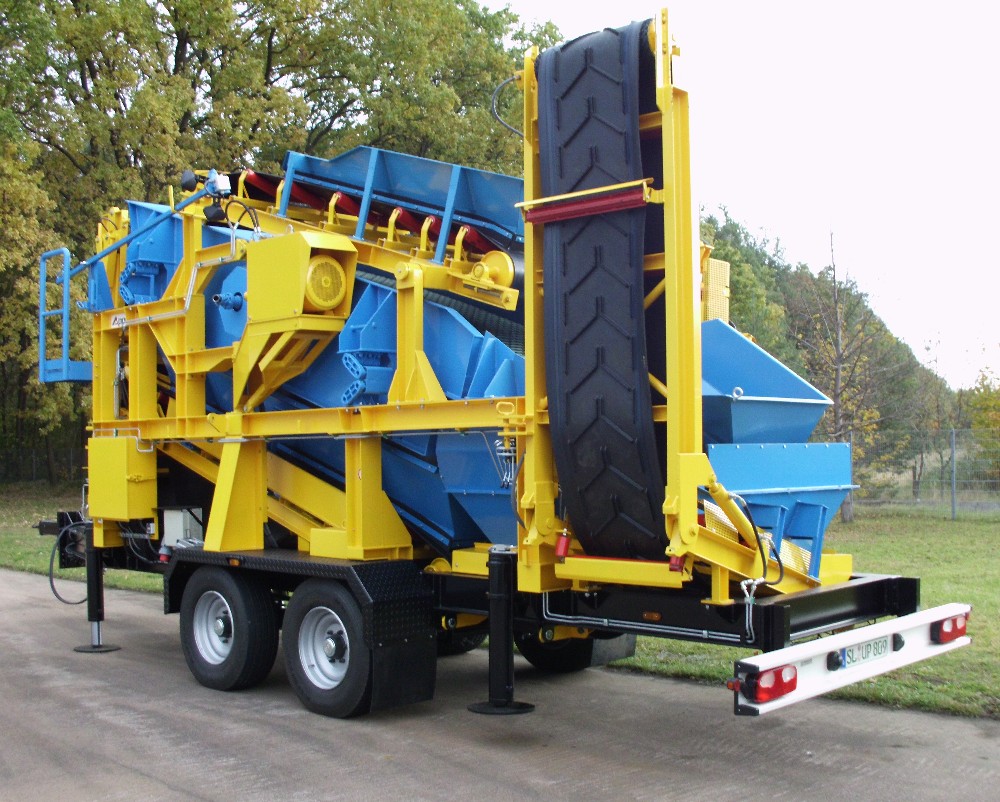

Mobile Screening Plant on Wheels Model SM 4000/2
Mobile screening plant on a semi-trailer with a twin deck screen box with vibrating screens,
size 4,000 x 1,500 mm, for the screening of building rubble and minerals.

Technical Specifications
Length 10,000 mm (approx.)
Width (transport) 2,500 mm
Height (transport) 3,950 mm (approx.)
Weight 12 tonnes (approx.)
Feed size 150 mm max.
Capacity up to approx. 300 to/h if fed continuously and depending on feed material, screen cover and handling
Power Consumption 30 kW (approx.)
Power supplied either by external power supply or by an integrated power unit

Main Components

Tandem Chassis
street legal

ABS

24 V electric system

underride guard with integrated lights

4 hydraulic supports

Twin Deck Step Grate
upper deck 4,000 x 1,500 mm

lower deck 4,000 x 1,500 mm

11 kW electric drive driven by Cardan shaft

screen cover on customer request

vertical clamping system

screen box suspended on maintenance free oscillating elements (reinforced version)

with overflow chute

with discharge hopper

Feed conveyor
folds hydraulically to grant better access at upper deck

Discharge Conveyor for Fines
with transfer chute and scraper system
folds hydraulically for transportation

Discharge Conveyor for Medium Size Grain
conveyor belt projects from the side of the vehicle (side variable)
Bi-folds hydraulically for transport (horizontally and vertically)

Discharge Conveyor for Medium Size Grain
conveyor belt projects from the side of the vehicle, with adapter for re-feed conveyor
with scraper system (rapper pulley)
folds hydraulically for transport

Electro-hydraulic pump
Complete unit mounted into Chassis
Pump operates of the hydraulic supports and the folding of the conveyors
Including control valves

Drive unit
Diesel engine with alternator

Maintenance and control platform
with ladders
- with handrail

Corrosion protection
All steel parts are sandblasted, primed and painted. Colour on customer's request.
