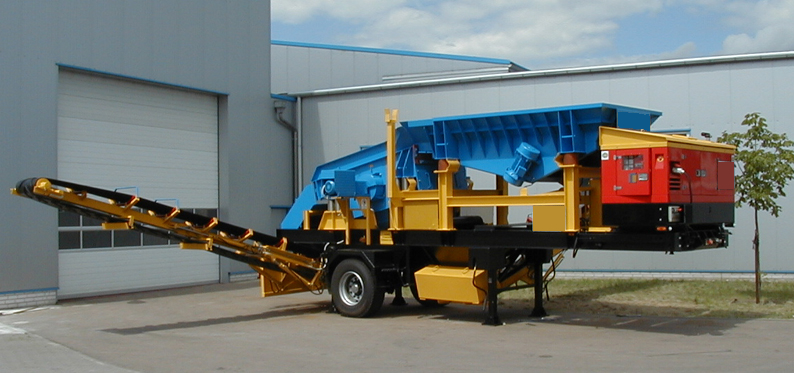

Mobile Heavy Duty Screening Plant Model SM 350 SL
Width: 2,500 mm
Transport Height: 4,000 mm
Weight: 16,000 kg
Feed Size: max. 1,000 x 1,000 mm
Performance: up to approx. 350 t/h if charged continuously and depending on feed material
Set Up Time: approx. 20 min.

The plant consists of following components

- Single axle semi-trailer

- 40 kVA Electric
alternator with sound proofing bonnet

- Feed Hopper

- Horizontal Heavy Duty Chute

- Heavy Duty Vibrating Screen

- Discharge Conveyors for Fine and Medium Grain built into chassis

fold and pivot hydraulically

- Electric Control Cabinet

- Chute for Oversize Grain

- Corrosion Protection

Optional: hydraulic folding system for pre-screening above the feed hopper
