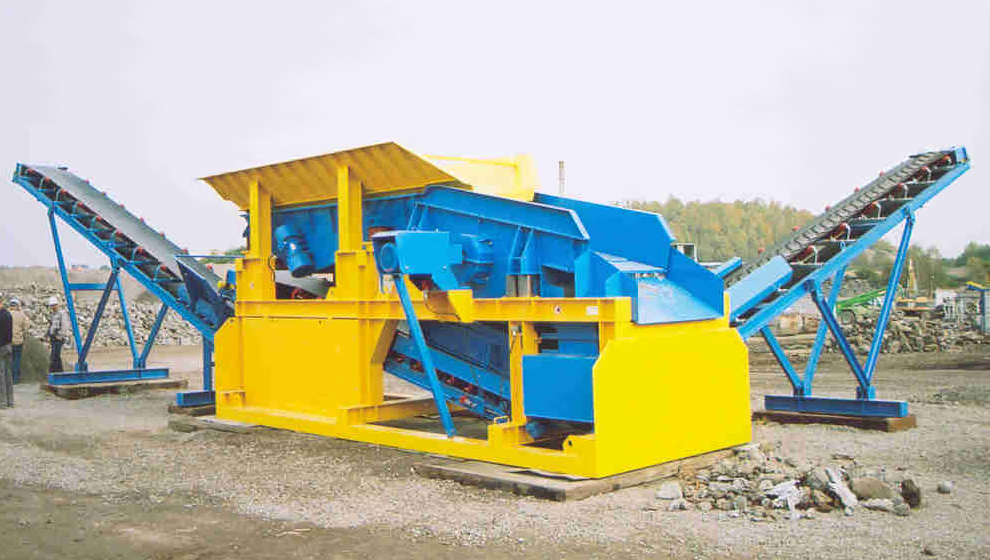

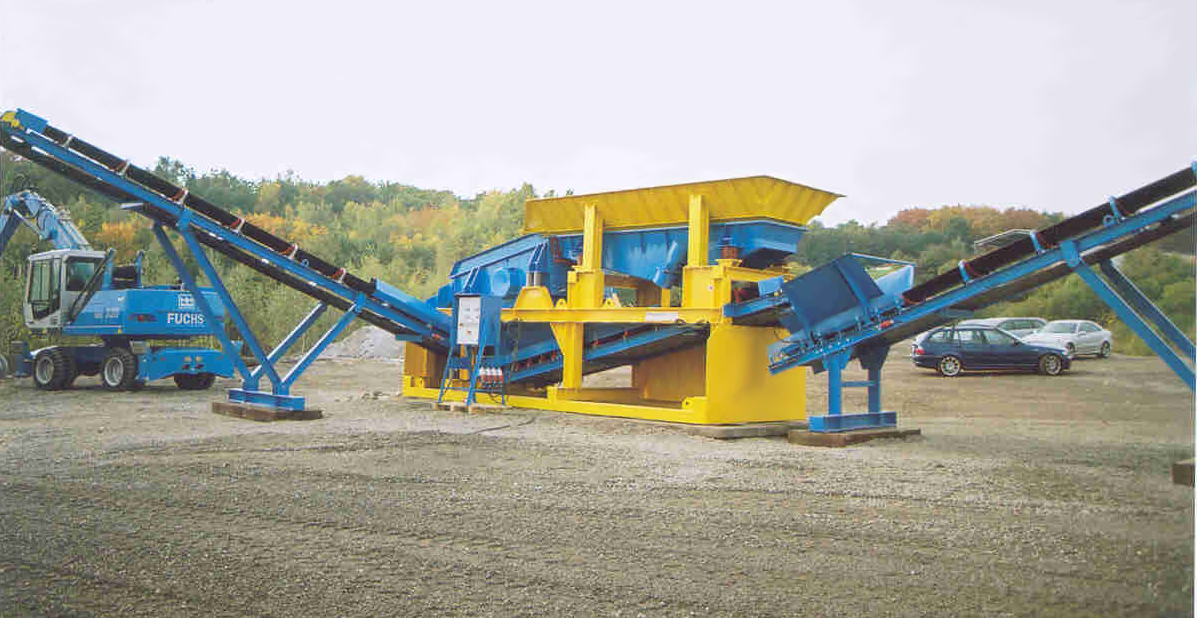

Mobile Heavy Duty Screening Plant on Skids Model SK 350 SL

Technical Specifications
Length: 7,820 mm
Width : 2,500 mm
Height: 3,400 mm
Weight: approx. 10 tonnes
Power Consumption approx. 25 kW
Performance max. 250 to/h

Solid Base Frame suitable for moving the plant about on site

Feed Hopper

Horizontal Heavy Duty Vibrating Chute

Heavy Duty Vibrating Screen

Oversize Grain Chute

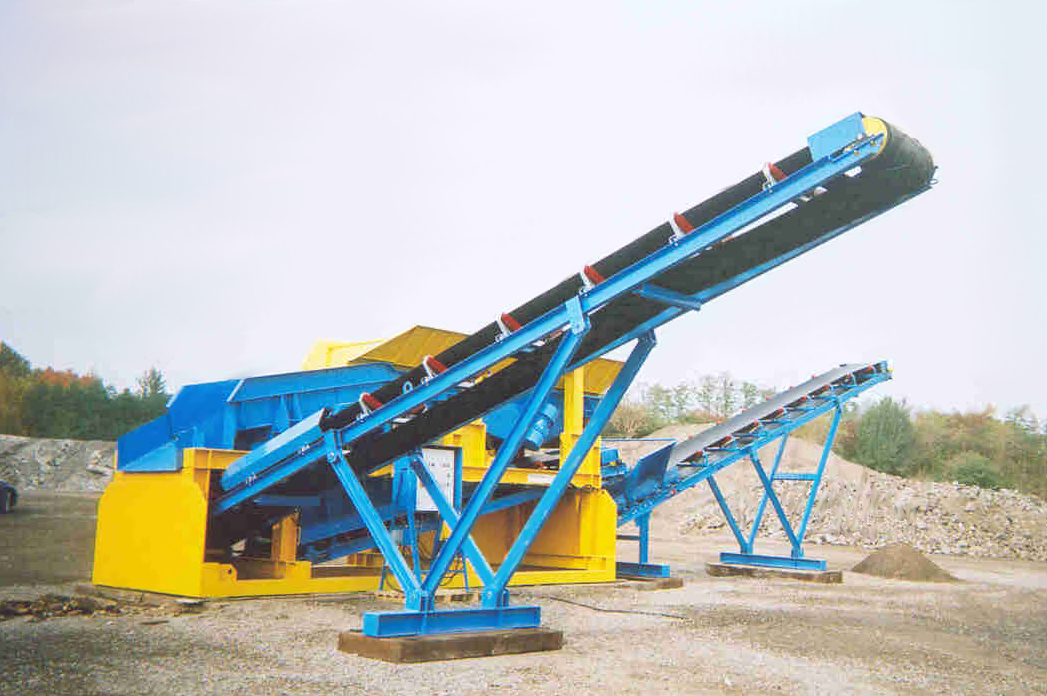

Medium Grain Conveyor

Fines Conveyor

Fines Stockpile Conveyor

Steel Spacer for feeding and removing the feed material

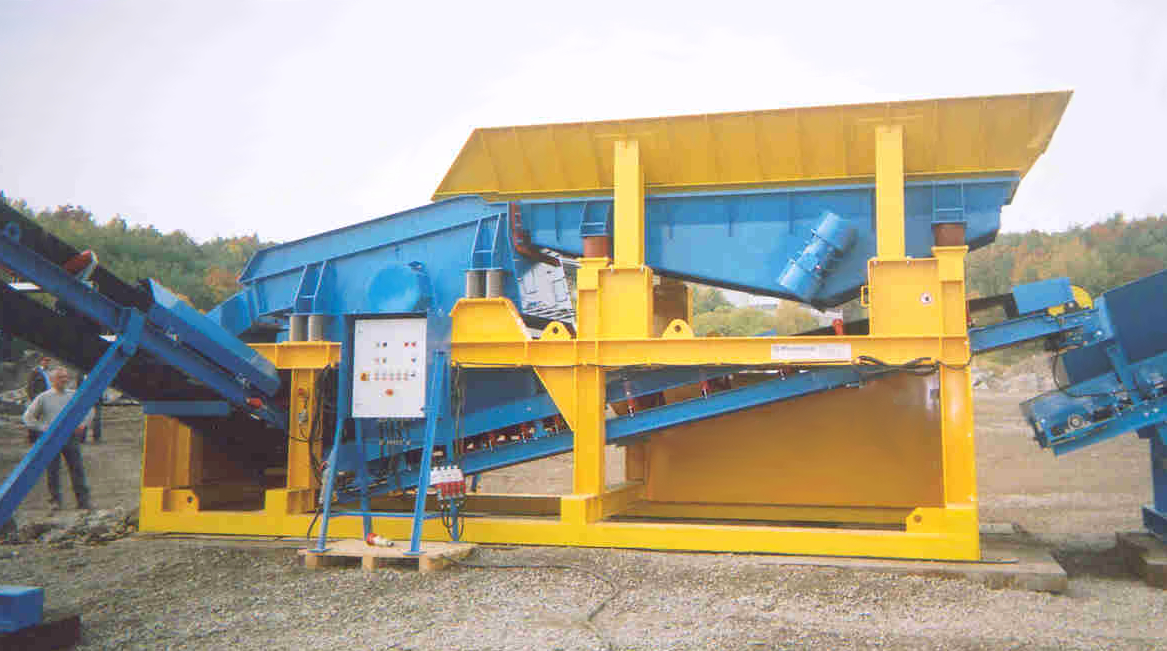

Separate Control Cabinet with speed control for the feed chute, weather protection bonnet and plug connection
