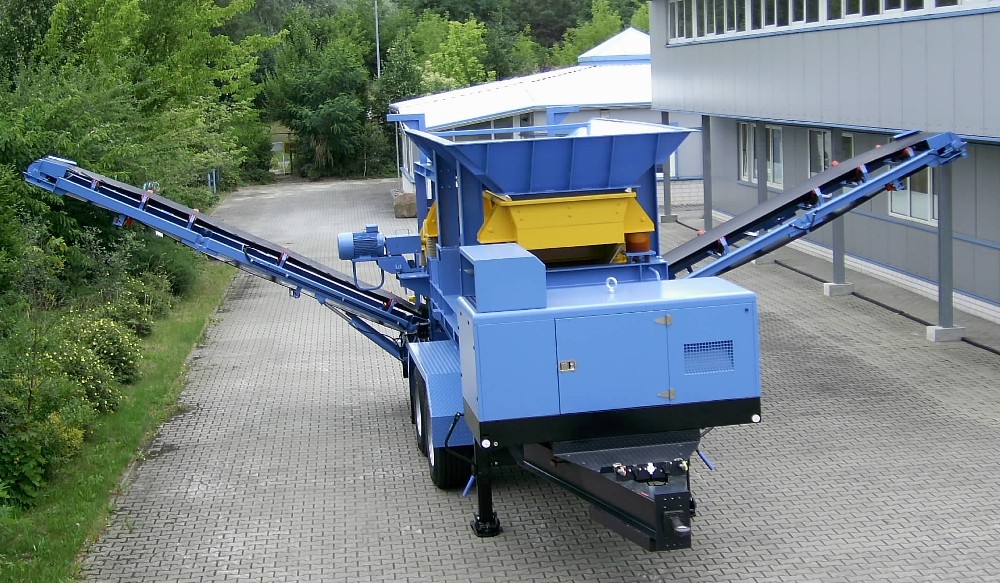

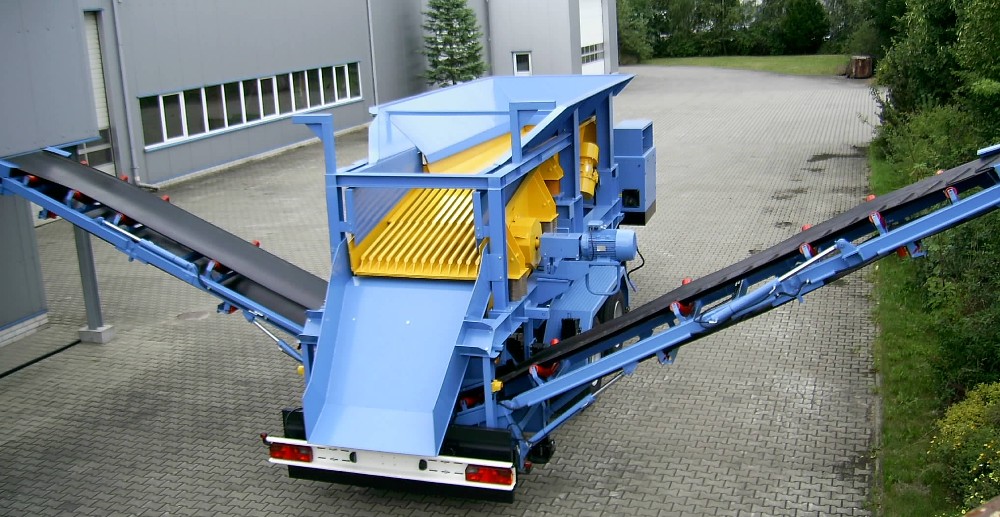

Mobile Heavy Duty Screening Plant Model SM 250 SL

Length incl. Tow-bar:                               8,300 mm

Width:                                                 2,500 mm
Transport Height:                                    4,000 mm

Weight:                                               13,000 kg
Feed Size:                                max.  800 x 800 mm
Performance:                  up to approx. 250 t/h if charged continuously and                                                       depending on feed material
Set Up Time:                                    approx. 20 min.

The plant consists of following components

- Tandem axle semi-trailer

- 40 kVA Electric alternator with sound proofing bonnet

- Feed Hopper

- Horizontal Heavy Duty Chute

- Heavy Duty Vibrating Screen

- Discharge Conveyors for Fine and Medium Grain built into chassis

  fold and pivot hydraulically

- Electric Control Cabinet

- Chute for Oversize Grain

- Corrosion Protection
